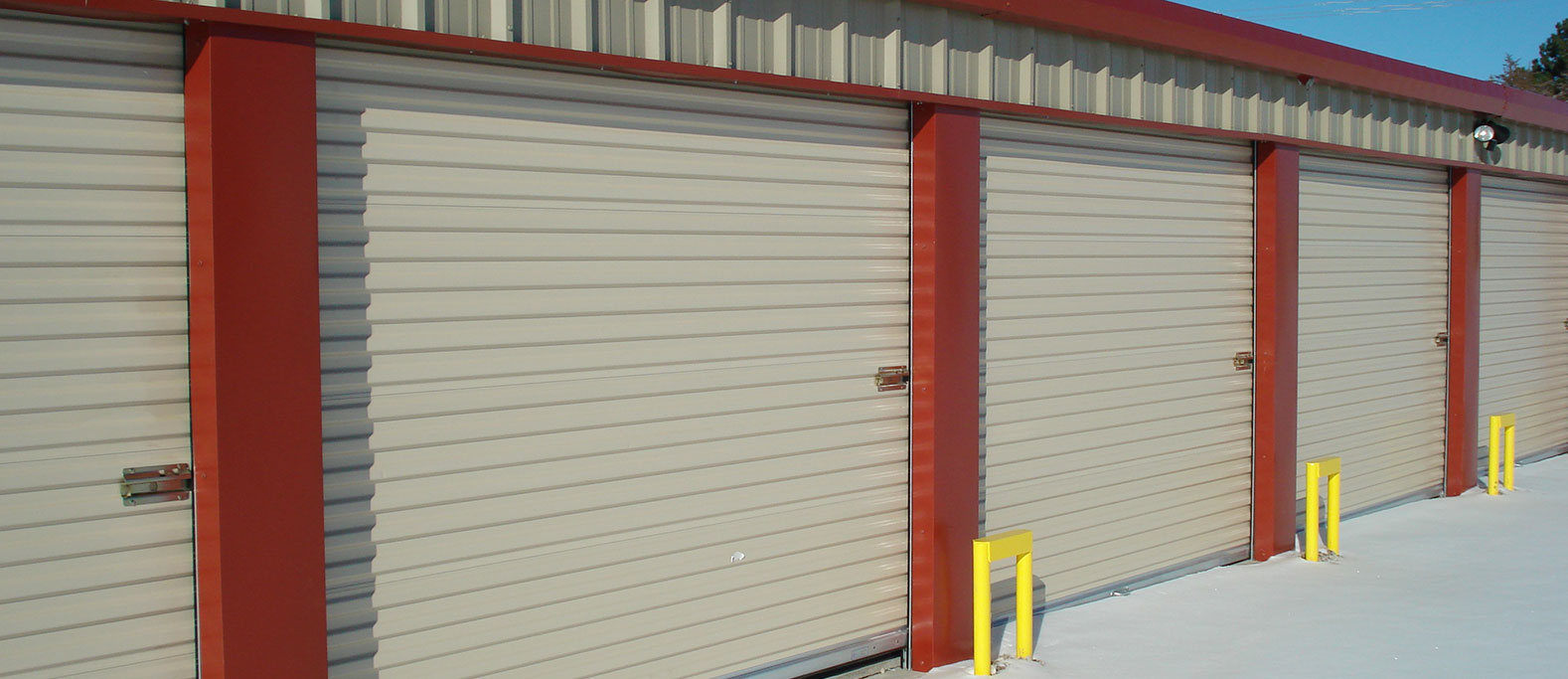

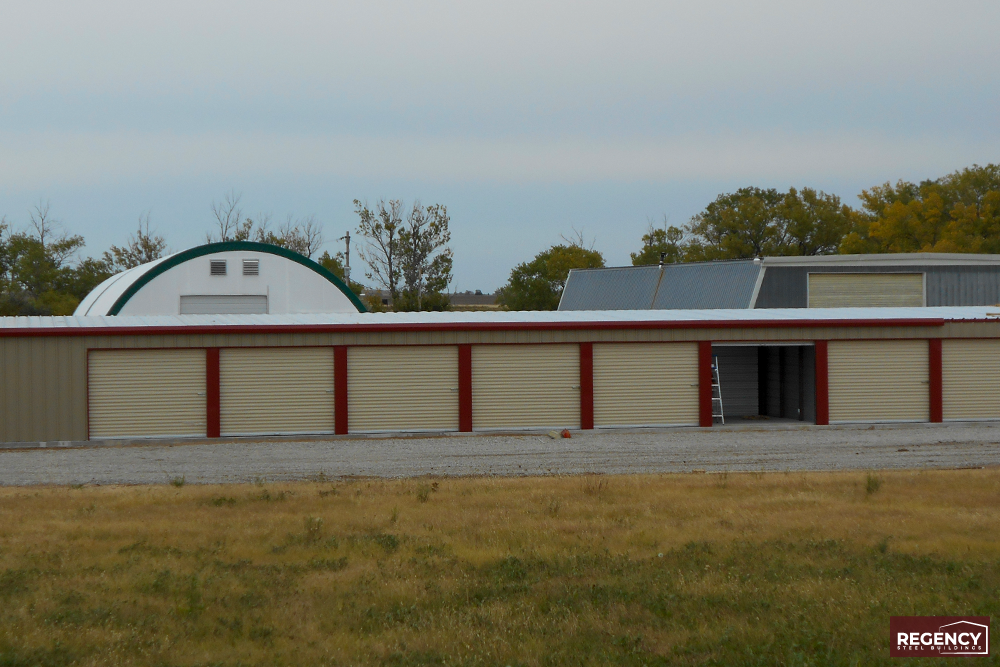

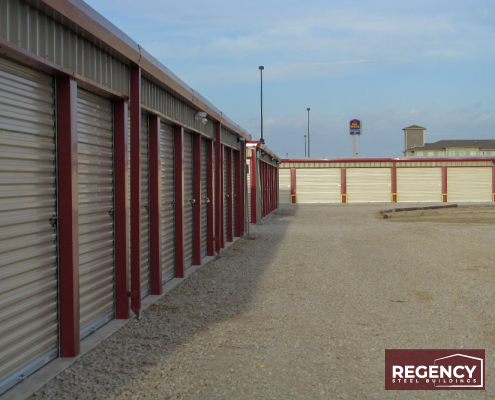

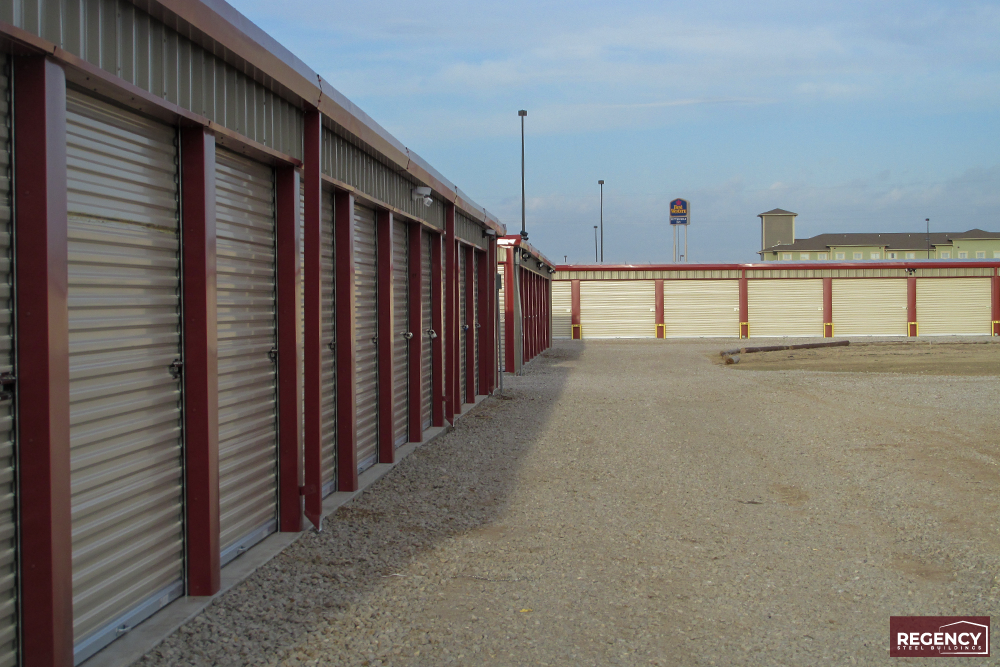

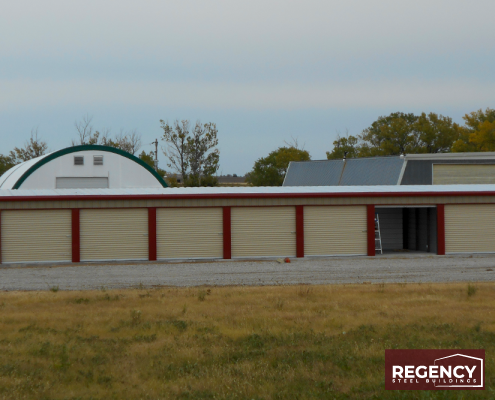

Mini Storage Outlet supplied this steel mini storage building for a customer in Hays, Kansas in 2014.
Desert sand in color, the building boasts striking rustic trim and a number of custom features, which include movable partitions in its 10’x15’ units and a Solar guard roof insulation system that substantially reduces energy expenditures.
Now a fully operational mini storage facility, the building stands 30’x120’x8.5’ and is covered by a Galvalume roof with a 0.5:12 roof pitch. It features (29) rentable storage units, (6) of which are 5’x10’ and have 4’x7’ framed openings. Another (3) units are 10’x10’ and have 9’x7’ framed openings, and the remaining (20) units are 10’x15’ with 9’x7’ framed openings, all of the 10’x 15′ Units have moveable partitions. Also included are (6) 4’x7’ Buckskin Model 650 mini storage doors, (4) 6’x7’ Buckskin Model 650 mini storage doors and an additional (19) 9’x7’ Buckskin Model 650 mini storage doors.
Additional building features include Kansas engineer-stamped drawings, wedge anchors and fasteners, 26-gauge partition panels with a Galvalume finish and gutters and downspouts.
The Hays area is located along a climactic boundary, and this often results in strong storms and even tornadoes in the area. With this is consideration, the metal mini storage building was constructed with a wind speed of 90 mph, a ground snow load of 30 lbs. and a roof snow load of 21 lbs.
Building Features
Location | Hays, Kansas |
County | Ellis County, Kansas |
Job Type | Exterior Access Mini Storage Building |
Number of Buildings | 1 |
Total Square Footage | 3,600 |
Number of Units | 29 |
Width | 30 |
Length | 120 |
Height | 8.5 |
Roof Pitches | .5:12 |
Roof Sheeting | 26 Gauge Galvalume PBR |
Wall Sheeting | 26 Gauge PBR in Desert Tan |
Wind Speed | 21 mph |
Snow Load | 30 psf |
Building Code | IBC 09 |
Doors | (6) 4’x7’ Buckskin Model 650 mini storage doors (4) 6’x7’ Buckskin Model 650 mini storage doors and an additional (19) 9’x7’ Buckskin Model 650 mini storage doors. |
Additional Features | Gutters and Downspouts 10’x 15′ Units have moveable partitions |
Hays is a part of Ellis County, in northwestern Kansas. It sits about 55 miles outside Hoisington and 30 miles from Russell.
